Description
Antenna has a circular directivity pattern.

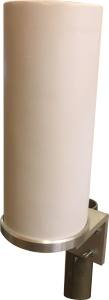

Radio-transparent shelter is made of fiberglass material using polyester binders. The outer surface of the shelter is covered with a gelcoat to protect against ultraviolet radiation from the sun as well as to prevent icing.
Antenna service life is more than 15 years.
Antenna aperture is:
360° Azimuth Beam; 42° Elevation Beam.
Antenna is a slotted twenty-element array implemented on a 19×9.5mm waveguide made of galvanized brass.
Connecting unit is 19×9.5mm flange waveguide.

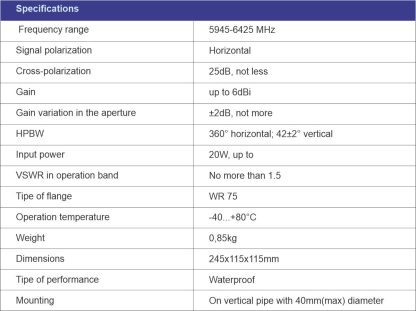

Polarization: linear horizontal
Operating frequency band: 5945-6425 MHz
Beam width in elevation plane: 42 degrees
Gain at maximum: 6 dBi
